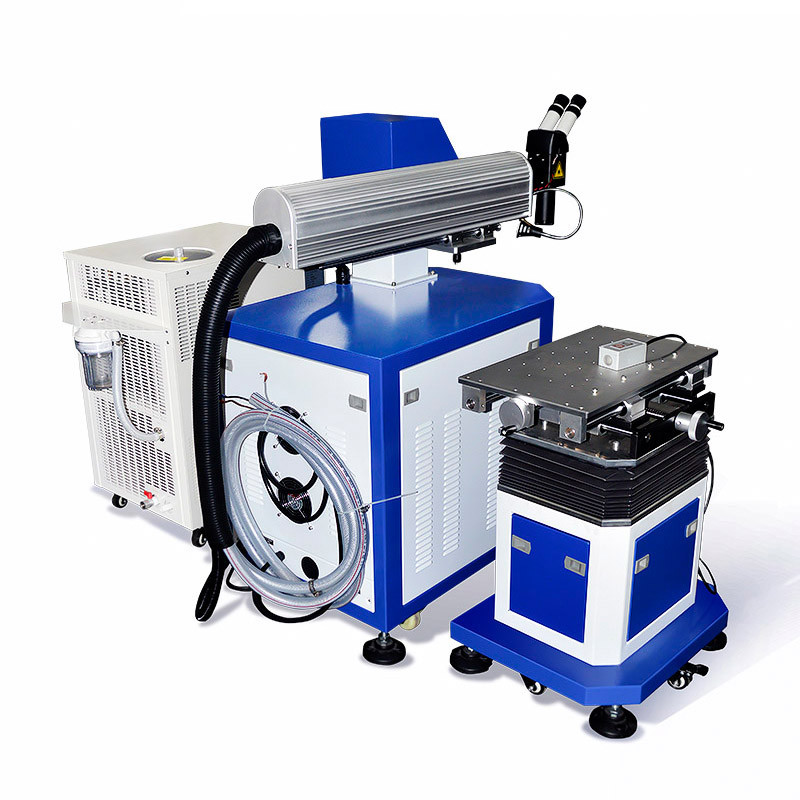

200W 300W 400W YAG Stainless Steel Laser Welding Machine

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200-500 Sets/Month

Delivery Time : 5-7 working days

Packaging Details : Wooden cases standard export package

Name : metal laser welding machine

Output Power : 200W/300W/400W

Laser Type : YAG

Pulse Width : 0.5~20ms, 0.5~20ms

Dimensions : 1250mm*620mm*1240mm

Wavelength : 30J/6ms(Optional 60J/12ms)

Key Selling Points : High Accuracy

Pulse frequency : 0.5~20HZ

Usage : Mold repair. Repair welding

Cooling Method : Water Cooling

Contact Now

High quality 300W YAG mould stainless steel laser welding machine


Product Description


MT-W series laser welding machine using Nd3 +: YAG solid-state laser, after beam expander, reflection (or optical fiber transmission) , the pulsed laser focused on object to be welded, work pieces can hand-held or fixture with clamps , Then the laser trigger foot switch effect on the work piece, moreover, it also can be an external control system for automatic welding. Frequency, pulse width, table speed, the moving direction of the pulse laser welding controlled through computer, the power of the laser frequency, pulse width can be adjusted to different settings to control the laser pulse energy.

Model MT-W200 MT-W300 MT-W400
Laser Type YAG
Laser wavelength 1064m
The maximum laser output power 200W 300W 400W
Maximum peak power laser 6-7KW
Max.Laser Pulse Width 30J/6ms(Optional 60J/12ms)
Pulse Width 0.5~20ms
Pulse frequency 0.5~20HZ
Number of Pulse Shape 50 groups
Closed Loop Feedback Function Current Feedback
Aiming Position MOTIC/LEICA Microscopy
Repeat positioning accuracy table 0.02mm
X/Y/Z table size (manual) 250mm*140mm*230mm(Auto Optional)
The maximum laser pulse energy 50J/10ms
The minimum spot diameter 0.2mm
Z-axis main beam lift (electric motor) 110mm
worktable load 250kg
Observation Systems Microscope (10X)
Working drive hand wheel and motol drive
Cooling Method water cooling
Electricity demand 220V±5%/50HZ/15-32A
Machine maximum power consumption 1.8-6KW
Machine Dimensions 1250mm*620mm*1240mm
